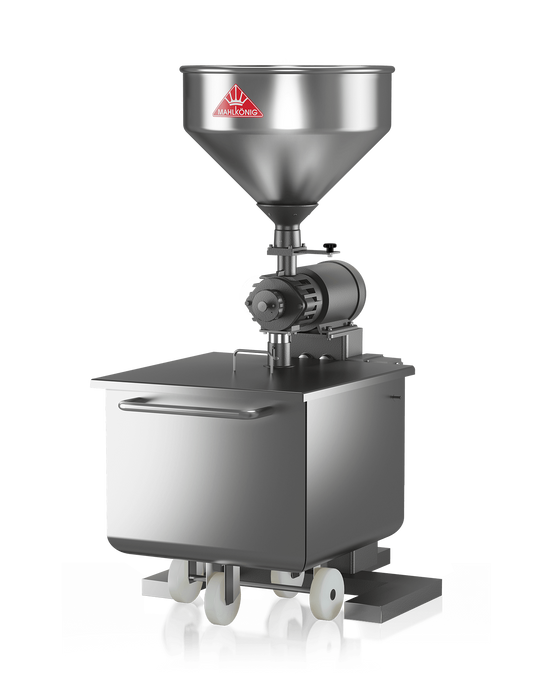

DK15

Industrial grinder
Part Number:

The DK15 provides smaller roasters with the perfect entry to industrial grinding. It features an even, premium grinding quality produced by its wear-resistant burrs. Its capacity ranges from 105 kg up to 200 kg per hour, depending on the model.

  • Outstanding even grinding quality

  • Wear-resistant premium burrs

  • Powerful three-phase motors with surface cooling and high starting torque – suitable for continuous operation

  • Motor ventilation

  • Overload protection

  • Service-free, constantly greased bearings

  • Ground material container (capacity 200 l)

  • Bean hopper magnet

Find Your Distributor

We cooperate with sales and service partners in more than 90 countries around the globe. Find the dealer that is closest to you and get into contact.

details

The DK15 provides smaller roasters with the perfect entry to industrial grinding. It features an even, premium grinding quality produced by its wear-resistant burrs. Its capacity ranges from 105 kg up to 200 kg per hour, depending on the model.

  • Outstanding even grinding quality

  • Wear-resistant premium burrs

  • Powerful three-phase motors with surface cooling and high starting torque – suitable for continuous operation

  • Motor ventilation

  • Overload protection

  • Service-free, constantly greased bearings

  • Ground material container (capacity 200 l)

  • Bean hopper magnet

technical details

Voltage // frequencies // phases:

  • 380-415 V // 50/60 Hz // 3~
  • 208-220 V // 50/60 Hz // 3~

Idle speed: 1440 rpm (50 Hz); 1730 rpm (60 Hz)

Burr diameter: 130 mm
Burr material:

DK15 LS, DM15 LS:

  • Fully hardened special steel
  • Grind Life (median setting): ca. 10-15 tons

DK15 L, DP15 L, DG15 L:

  • Fully hardened cast steel
  • Grind Life (median setting): ca. 15-20 tons

DK15 LH:

  • Tungsten Carbide
  • Grind Life (median setting): ca. 25-30 tons

Grinding capacity - fine* kg/h (approx.):

  • 105 (DK15 L)
  • 120 (DK15 LS, DK15 LH)
  • 130 (DG15 L)
  • 200 (DP15 L)

Grinding capacity - medium* kg/h (approx.):

  • 115 (DK15 L)
  • 130 (DK15 LS, DK15 LH)
  • 150 (DG15 L)
  • 220 (DP15 L)

Bean hopper capacity: approx. 30 kg
Max. nominal power: 2200 W

Dimensions (w x h x d):

  • 79 x 155 x 123 cm (incl. base)
  • 69 x 70 x 79 cm l 200 l (container)

Dimensions of packing (w x h x d): Depends on individual version and equipment
Net weight: 132 kg (incl. base)
Gross weight: Depends on individual version and equipment

Standard colors:

  • Textured, reddish grey


    Special Equipment

    • Burrs for grains or for other grinding goods

    • Electropneumatic gate for a controlled supply of material

    • Stepless grind adjustment for DP15 L model

    • Pulling tool optional accessory


    Legend

    • DK15 L (Cast steel for Coffee)

    • DK15 LS (Steel for Coffee)
    • DK15 LH (Tungsten carbide for Coffee)

    • DM15 LS (Steel for Poppy seed)

    • DP15 L (Cast steel for Pepper)

    • DG15 L (Cast steel for Grains)


    *Depends on the grinding goods and the chosen degree of fineness.
    ..All measured values under laboratory conditions. Other electric specifications available on request. ..Subject to change without prior notice.
