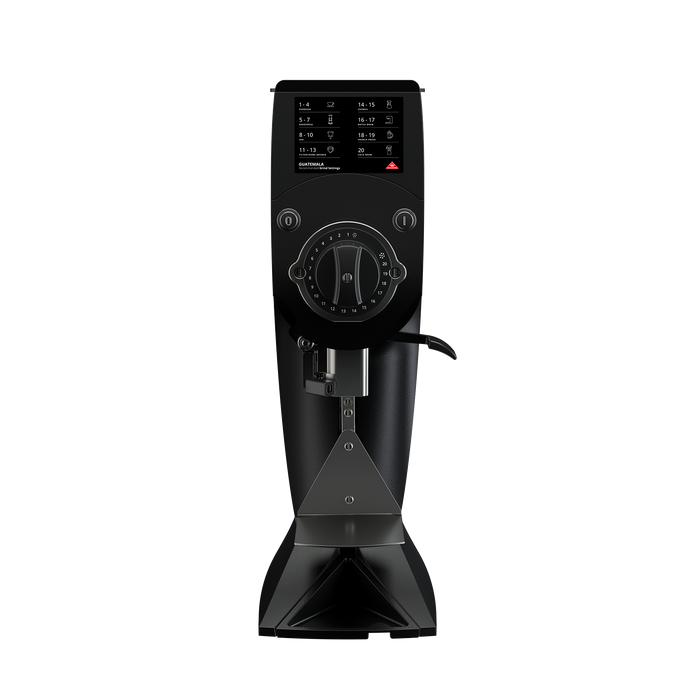

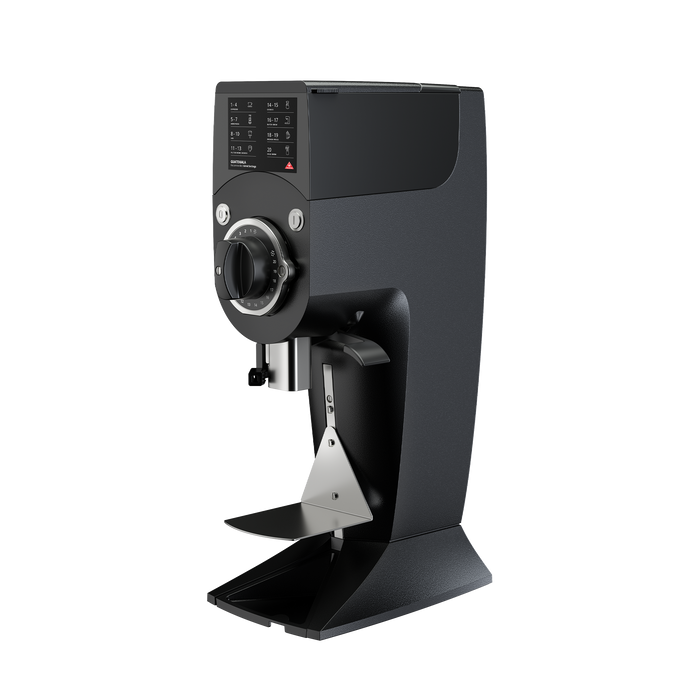

Guatemala Allround Shop Coffee Grinder

Optimized for Shops, Roasteries & Coffee Laboratories

Mahlkönig presents a redesigned version of the popular Guatemala shop grinder. The classic went through a face-lift while keeping loved and proven technical specifications. In addition to a new design, this classic comes with a new burr geometry, increased hopper capacity and sleek full-aluminum body for maximum longevity.

• Residue free grinding due to vertical burrs
• Spout with metal knocker and bag clamp for the perfect hold of the coffee bag
• Height-adjustable and removable table for a flexible positioning of the coffee grounds container or a bag
• Allround grind size settings from espresso to filter and cold brew
• Grind settings recommendation labeled on grinder

Voltage // frequencies // phases // nominal power:

• 220-240 V // 50/60 Hz // 1~ // 1100 W
• 100-127 V // 60 Hz // 1~ // 1100 W
• 100 V // 50/60 Hz // 1~ // 1100 W

Idle speed: 2900 rpm (50 Hz); 3500 rpm (60 Hz)

Burr diameter: 71 mm

Burr material: Special steel

Burr grind life (median setting): ca. 3.000 kg

Average grinding capacity*: approx. 800-900 g/min; 13-15 g/s

Bean hopper capacity: approx. 900 g

Dimensions (w x h x d): 22 x 62 x 33 cm

Dimensions of packing (w x h x d): 47 x 30 x 70 cm

Net weight: 28 kg

Gross weight: 30 kg

Certifications: CE, CB, ETL Safety, ETL Sanitation

Standards:

Conforms to:

• IEC/EN 60335-1
• IEC/EN 60335-2-64

Certified to:

• UL 763
• CSA C22.2 No. 195
• NSF/ANSI 8

Standard colors:

• Matte black

Special equipment:

• Bag holder
• Vibrating basket (SB model)
• 71 mm special steel burrs for espresso
• Stainless steel dosing cups
• 100-127 V includes different hopper lid for NSF certification

*Depends on the grinding goods and the chosen degree of fineness.
All measured values under laboratory conditions. Other electric specifications available on request. Subject to change without prior notice.
