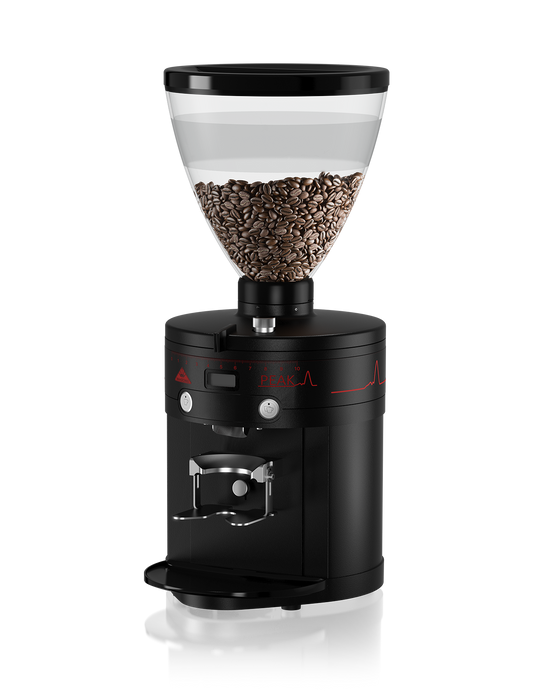

PEAK

Espresso grinder
Part Number:

The PEAK grinder model is no longer available. Product sheets with technical information, instruction manuals and spare parts lists are available in the downloads section below.

  • Enjoy the ultimate performance of premium cast steel burrs with 80 mm in diameter, having no settling-in effect and being rotated by only 900 rpm while being cooled by a double ventilation system to preserve the coffee’s unique aroma. Experience ultimate control and functionality with the adjustable spout, the most accurate dose adjustment by 1/100 seconds and the constantly visible temperature indication on the high-contrast premium OLED display.
  • Wear-resistant premium cast steel burrs with optimal settling-in-effect

  • Double ventilation for cool grinding

  • Adjustable spout for a centered distribution of the powder into a portafilter of any size

  • Accurate dose adjustment with 0.01 sec steps

  • Stepless grind adjustment with precise adjustment

  • Scale for exact grind adjustment and repeatability

  • Premium OLED-display with intuitive menu and wide viewing angle (160°)

  • Display can show internal temperature

  • Individually adjustable spout illumination

  • Robust portafilter holder

details

The PEAK grinder model is no longer available. Product sheets with technical information, instruction manuals and spare parts lists are available in the downloads section below.

  • Enjoy the ultimate performance of premium cast steel burrs with 80 mm in diameter, having no settling-in effect and being rotated by only 900 rpm while being cooled by a double ventilation system to preserve the coffee’s unique aroma. Experience ultimate control and functionality with the adjustable spout, the most accurate dose adjustment by 1/100 seconds and the constantly visible temperature indication on the high-contrast premium OLED display.
  • Wear-resistant premium cast steel burrs with optimal settling-in-effect

  • Double ventilation for cool grinding

  • Adjustable spout for a centered distribution of the powder into a portafilter of any size

  • Accurate dose adjustment with 0.01 sec steps

  • Stepless grind adjustment with precise adjustment

  • Scale for exact grind adjustment and repeatability

  • Premium OLED-display with intuitive menu and wide viewing angle (160°)

  • Display can show internal temperature

  • Individually adjustable spout illumination

  • Robust portafilter holder

technical details

Voltage // frequencies // phases:

  • 200-240 V // 50/60 Hz // 1~
  • 100-127 V // 50/60 Hz // 1~

Idle speed: 900 rpm (50 Hz); 1110 rpm (60 Hz)
Burr diameter: 80 mm
Burr material: Cast steel
Average grinding capacity*: approx. 3 g/s
Bean hopper capacity: approx. 1500 g
Max. nominal power: 690 W
Dimensions (w x h x d): 24 x 55 x 32 cm
Dimensions of packing (w x h x d): 57 x 30 x 37 cm
Net weight: 15.4 kg
Gross weight: 16 kg
Certifications: CE, CB, ETL Safety, ETL Sanitation l Additional on request

Standards:

  • IEC/EN 60335-1

  • IEC/EN 60335-2-64

Conforms to:

  • Standard ANSI/UL 763

Certified to:

  • CAN/CSA std. CSA-C22.2 No. 195

  • ETL Sanitation Mark/ANSI 8

Standard colors:

  • Fine textured finish, matte black



    Bean hopper (accessories)

    • approx. 500 g | approx. 800 g


    Special Equipment

    • Portafilter holder narrow (Dalla Corte)

    • Portafilter holder angled (La Marzocco)


    *Depends on the grinding goods and the chosen degree of fineness.
    ..All measured values under laboratory conditions. Other electric specifications available on request. ..Subject to change without prior notice.
