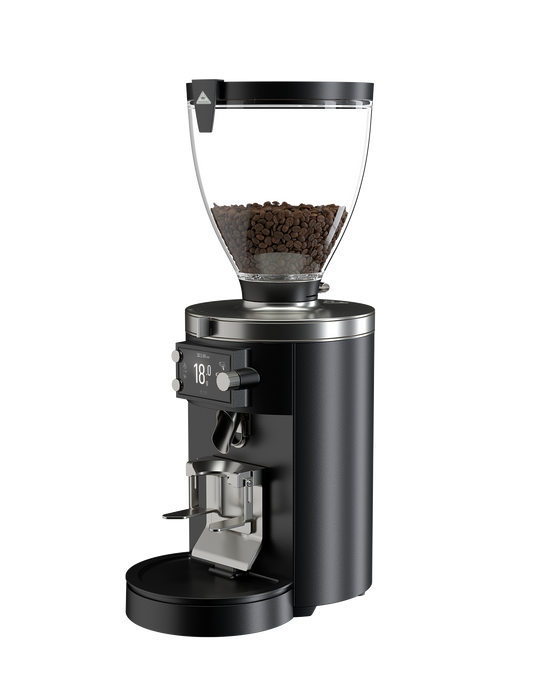

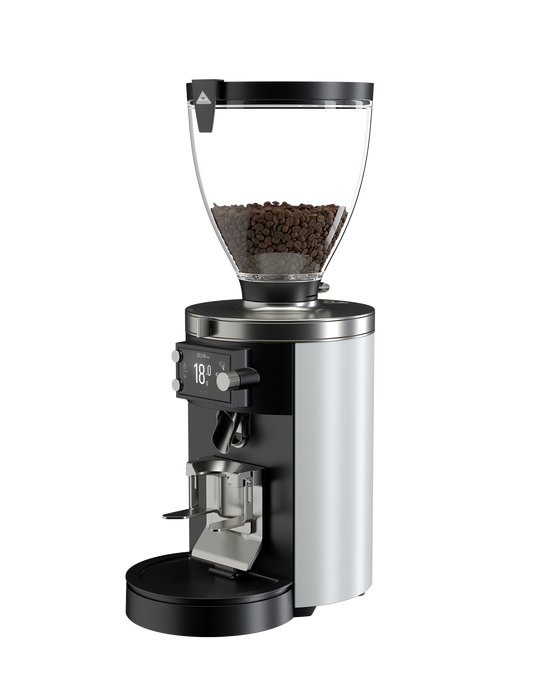

E80S Grind-by-Weight Espresso Coffee Grinder

E80S GbW

Espresso Grinder

SPEED MEETS ACCURACY

The E80S GbW combines record grinding speed with Mahlkönig’s real-time Grind-by-Weight technology and innovative Disc Distance Detection feature. Add automatic portafilter detection and keeping your perfect grind settings has never been easier - even during rush hour in high-volume cafés.

Find Your Distributor
Buy Spare Parts

We cooperate with sales and service partners in more than 90 countries around the globe. Find the distributor that is closest to you and get into contact.

MORE INFORMATION

Overview Features Technical Details Downloads Service Videos

Grinding Unlimited and Absolute Control.

The E80S Grind-by-Weight combines record grinding speed with Mahlkönig’s ground-breaking technology of on demand dosing by weight. The grinders technology monitors its weight output and self-adjusts to consistently provide you with the most accurate dosing available. Mahlkönig’s Disc Distance Detection (DDD) feature helps to keep the grinder dialed in and provides additional quality control.

The portafilter detection recognizes recipe pre-sets for up to six portafilters and automatically delivers the dose assigned. The E80S GbW will help optimize your espresso preparation to ensure the best tasting coffee with each shot and reduce time spent on equipment training for staff.

  • 80 mm diameter special steel burrs
  • Powerful motor with active temperature control for high-speed performance
  • Grind-by-Weight technology featuring a high-precision load cell for real-time dosing control during the grinding process
  • Patented Disc Distance Detection (DDD) enabling accurate settings of the degree of fineness
  • Time savings and quality assurance through integrated Portafilter Detection
  • Adjustable illuminated spout providing a clean and centered coffee outlet
  • Pleasantly quiet grinding
  • High-resolution 88.3 mm display with a wide viewing angle

Voltage // frequencies // phases // nominal power:

  • 220-240 V // 50/60 Hz // 1~ // 520/600 W
  • 110-127 V // 60 Hz // 1~ // 845 W
  • 100 V // 50/60 Hz // 1~ // 620/780 W

Idle speed: 1400 rpm (50 Hz); 1700 rpm (60 Hz)

Burr diameter: 80 mm

Burr material: Special steel

Burr grind life (median setting): ca. 1.500 kg

Average grinding capacity*:

  • 50 Hz: 6-7 g/s @ 250 µm
  • 60 Hz: 7-8 g/s @ 250 µm

Bean hopper capacity: approx. 1800 g

Dimensions (w x h x d): 24 x 63 x 34 cm

Dimensions of packing (w x h x d): 69.7 x 28.7 x 47.5 cm

Net weight: 18.0 kg

Gross weight: 19.8 kg

Certifications: CE, CB, ETL Safety, ETL Sanitation

Standards:

Conforms to:

  • IEC/EN 60335-1
  • IEC/EN 60335-2-64

Certified to:

  • UL 763
  • CSA C22.2 No. 195
  • NSF/ANSI 8

Standard colors:

  • Polished aluminum, matte black
  • Polished aluminum, matte black and white

Optional accessories:

  • Bean hopper approx. 250 g
  • Bean hopper approx. 1200 g
  • 80 mm premium cast steel burrs
  • Burr replacement tool
  • Calibration weight 1 kg
  • CB-certified aluminum adapter for Cans



*Depends on the grinding goods and the chosen degree of fineness.
All measured values under laboratory conditions. Other electric specifications available on request. Subject to change without prior notice.

Overview

Grinding Unlimited and Absolute Control.

The E80S Grind-by-Weight combines record grinding speed with Mahlkönig’s ground-breaking technology of on demand dosing by weight. The grinders technology monitors its weight output and self-adjusts to consistently provide you with the most accurate dosing available. Mahlkönig’s Disc Distance Detection (DDD) feature helps to keep the grinder dialed in and provides additional quality control.

The portafilter detection recognizes recipe pre-sets for up to six portafilters and automatically delivers the dose assigned. The E80S GbW will help optimize your espresso preparation to ensure the best tasting coffee with each shot and reduce time spent on equipment training for staff.

Features
  • 80 mm diameter special steel burrs
  • Powerful motor with active temperature control for high-speed performance
  • Grind-by-Weight technology featuring a high-precision load cell for real-time dosing control during the grinding process
  • Patented Disc Distance Detection (DDD) enabling accurate settings of the degree of fineness
  • Time savings and quality assurance through integrated Portafilter Detection
  • Adjustable illuminated spout providing a clean and centered coffee outlet
  • Pleasantly quiet grinding
  • High-resolution 88.3 mm display with a wide viewing angle
Technical Details

Voltage // frequencies // phases // nominal power:

  • 220-240 V // 50/60 Hz // 1~ // 520/600 W
  • 110-127 V // 60 Hz // 1~ // 845 W
  • 100 V // 50/60 Hz // 1~ // 620/780 W

Idle speed: 1400 rpm (50 Hz); 1700 rpm (60 Hz)

Burr diameter: 80 mm

Burr material: Special steel

Burr grind life (median setting): ca. 1.500 kg

Average grinding capacity*:

  • 50 Hz: 6-7 g/s @ 250 µm
  • 60 Hz: 7-8 g/s @ 250 µm

Bean hopper capacity: approx. 1800 g

Dimensions (w x h x d): 24 x 63 x 34 cm

Dimensions of packing (w x h x d): 69.7 x 28.7 x 47.5 cm

Net weight: 18.0 kg

Gross weight: 19.8 kg

Certifications: CE, CB, ETL Safety, ETL Sanitation

Standards:

Conforms to:

  • IEC/EN 60335-1
  • IEC/EN 60335-2-64

Certified to:

  • UL 763
  • CSA C22.2 No. 195
  • NSF/ANSI 8

Standard colors:

  • Polished aluminum, matte black
  • Polished aluminum, matte black and white

Optional accessories:

  • Bean hopper approx. 250 g
  • Bean hopper approx. 1200 g
  • 80 mm premium cast steel burrs
  • Burr replacement tool
  • Calibration weight 1 kg
  • CB-certified aluminum adapter for Cans



*Depends on the grinding goods and the chosen degree of fineness.
All measured values under laboratory conditions. Other electric specifications available on request. Subject to change without prior notice.

Downloads
Service Videos

PRODUCT HIGHLIGHTS

Heavy Duty & Powerful Motor

With active temperature control for high-speed performance, the E80S GbW will keep up in the busiest of cafes and save the coffee aroma even during rush-hour periods, with pleasantly quiet grinding.

Premium Coffee Grinding Profile

The E80S GbW burrs’ size, material and geometry make all the difference for optimal extraction. Equipped with 80 mm special steel burrs featuring an individually developed tooth design.
